# Flashing OS for iSG Box

**ATTENTION:** Flashing the OS will erase all data. Please back up your data before proceeding.

#### **Preparation**

1. Prepare a USB A-to-A cable (e.g., [**THIS**](https://www.amazon.com/dp/B07KJFWYXF)).
2. Get a small screwdriver or similar slim stick (diameter <2.9mm) or just a paperclip (for resetting the iSG Box).
3. Download and install the hardware driver [**Rockchip Driver Assistant**](https://drive.google.com/uc?export=download\&id=1j2phQA_7_FIGTW5EsZL_plLrBKMhxhZ1) (Windows only).
4. Download the utility software [**FactoryTool**](https://drive.google.com/uc?export=download\&id=15ovSGWlMg0A-QBHtjX-D67CdkIIzXPke) to your computer (Windows only).
5. Download the latest **OS File** for the iSG Box from one of the following links:\
   [**iSG Box SE**](https://drive.google.com/uc?export=download\&id=19GfJVbo4DmtYc-JYTWrySAFLHDqrCDaO) (MD5: 290E585B8373BFCAFBAB2EC24B312377)\
   iSG Box (not available now)\
   It is highly recommended to check the MD5 value before flashing ([**Download MD5 Checker**](http://getmd5checker.com/)).

#### **Flashing the OS**

1. Unzip the utility software pack and open **FactoryTool.exe**

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2F0uoQLm70QIKOgqpZZgt2%2F01.png?alt=media&#x26;token=8f4c8014-d8e6-40ee-bbde-8fe0c7e34dfd" alt=""><figcaption></figcaption></figure>

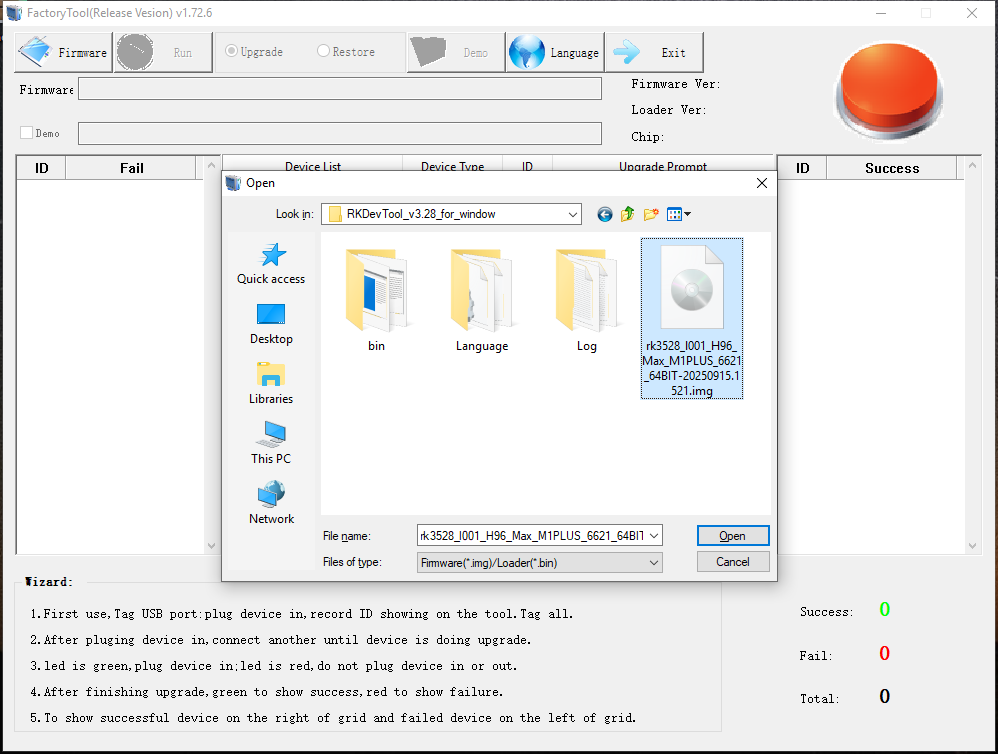

2. If the software is not in English, click the Language Selection button to change the language. Then, click **Firmware**, and select the OS file (img format).&#x20;

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2F0F1HffMitcGzVrZHwcS1%2Fimage.png?alt=media&#x26;token=39481044-23c1-4d32-a333-e8525db0425b" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2FPGqKfFT9wT7II5e9IJ8Y%2F05.png?alt=media&#x26;token=a0166446-58f1-46a3-b8de-9f6144445a0a" alt=""><figcaption></figcaption></figure>

3. Click **Run** to begin the process.

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2FAGtBSXGPmOCFC1XCwt4T%2Fimage.png?alt=media&#x26;token=27b1b28f-9177-4b3d-a574-1391687b1caa" alt=""><figcaption></figcaption></figure>

4. Insert the screwdriver or paperclip into the hole labeled **"AV"** and press the reset button (located at the bottom of the hole—you’ll feel a click).
5. While holding the reset button, connect the iSG Box to your PC using the USB A-to-A cable.

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2FTzlRl3M07XiBeOyAC89d%2F%E6%9C%AA%E5%91%BD%E5%90%8D.png?alt=media&#x26;token=06de0bf0-92dc-46af-88ad-27e47686eb9d" alt=""><figcaption></figcaption></figure>

> **Note:** Use the **USB2** on the iSG Box SE for flashing.

6. Once FactoryTool detects the connection, it will begin flashing the OS. You can release the reset button once the process starts.

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2FVSc9PyZ3AGTf5O5sOyOQ%2Fimage.png?alt=media&#x26;token=d7eb3403-702e-4b3e-8c4c-bdfc97bd4743" alt=""><figcaption></figcaption></figure>

6. After flashing is complete, disconnect the cable and power on the iSG Box. It will now run the new OS.
