# Energy

## 1. Prerequisites:

You need to have a device with metering capabilities.

## 2. Getting Started:

We will add a device with metering capabilities to iSG. Below is an example of adding a Zigbee device to HA:

1\) Add the device through ZHA to HA. If you are not sure about the steps, you can refer to the article "[Add Zigbee devices in HA,](https://kb.linknlink.com/isg/advanced-features/home-assistant/add-devices-in-home-assistant/ha-official-integrations/zha-integration)" which shows how to use the built-in HA service of iSG to add Zigbee devices. If you have an external HA and want to import the devices from it to iSG, you can refer to [this](https://kb.linknlink.com/isg/settings/home-assistant-settings/external-ha) article  to associate the external HA with iSG.

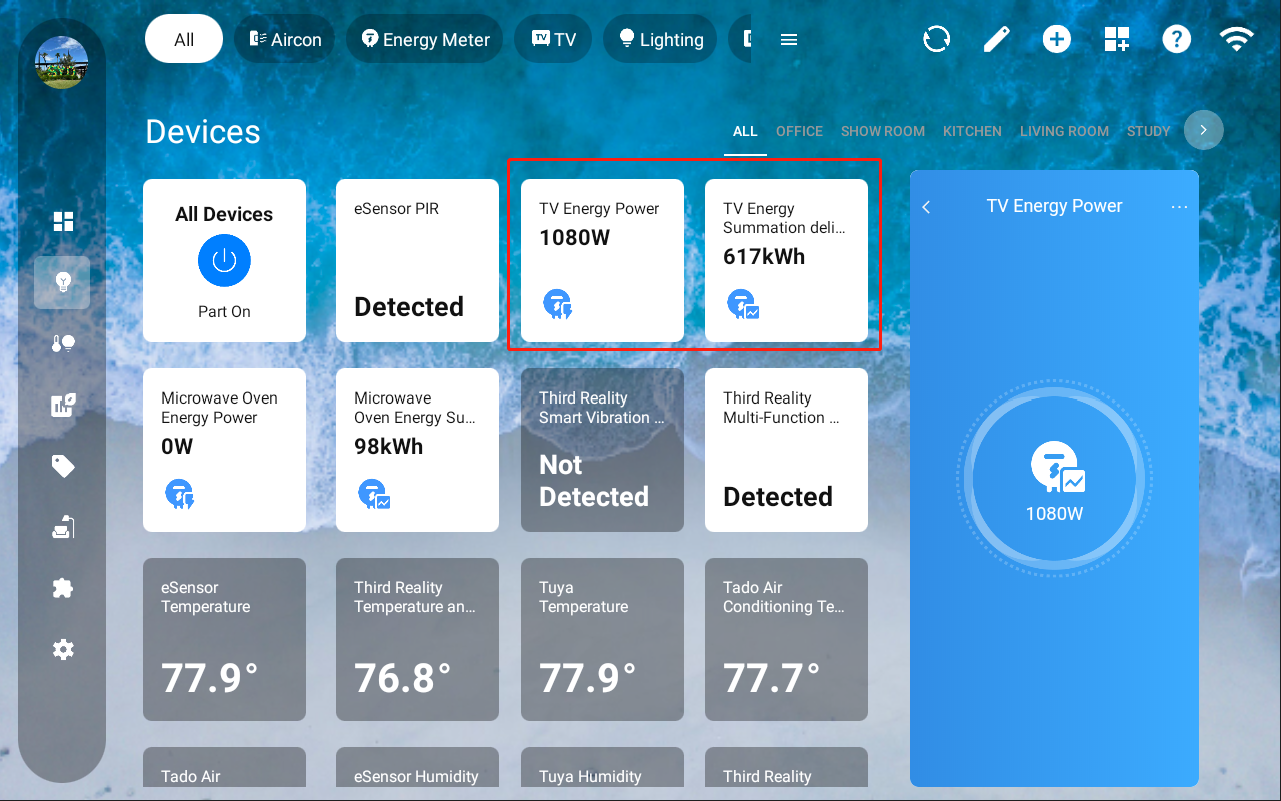

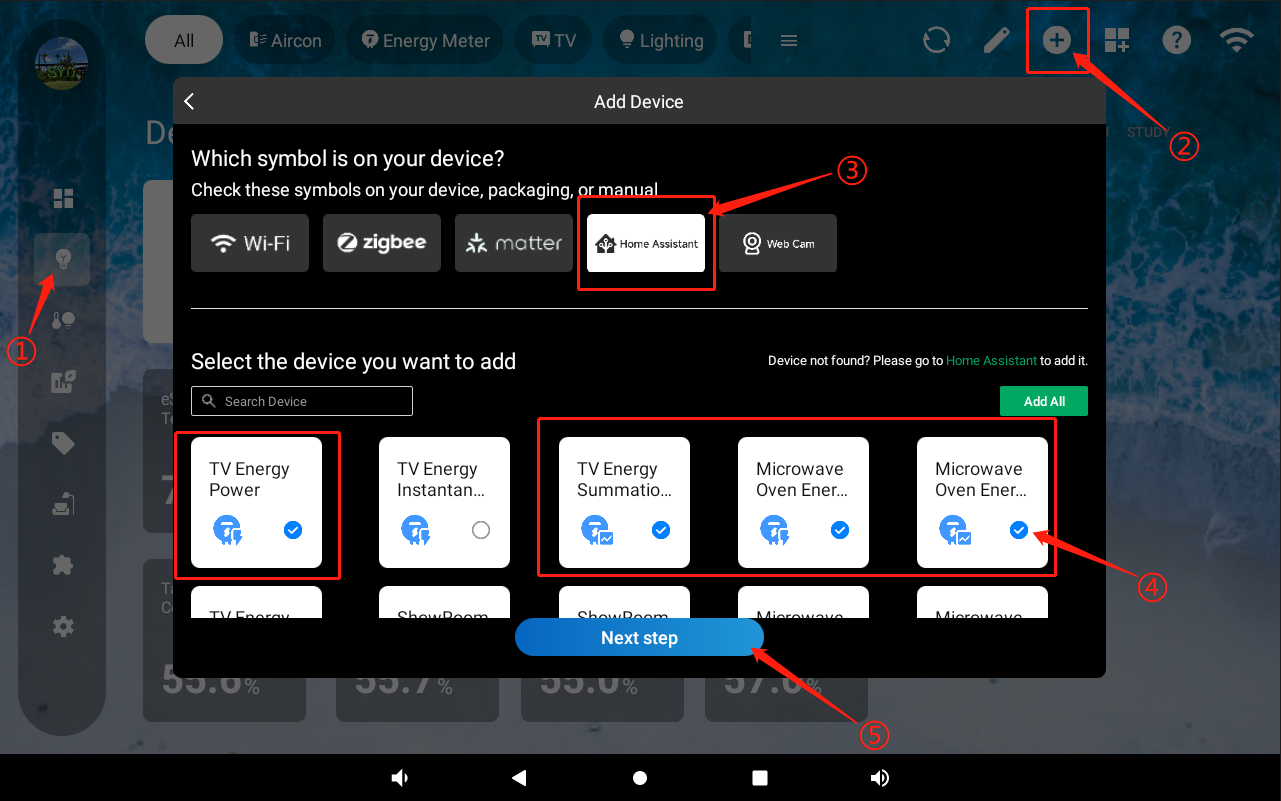

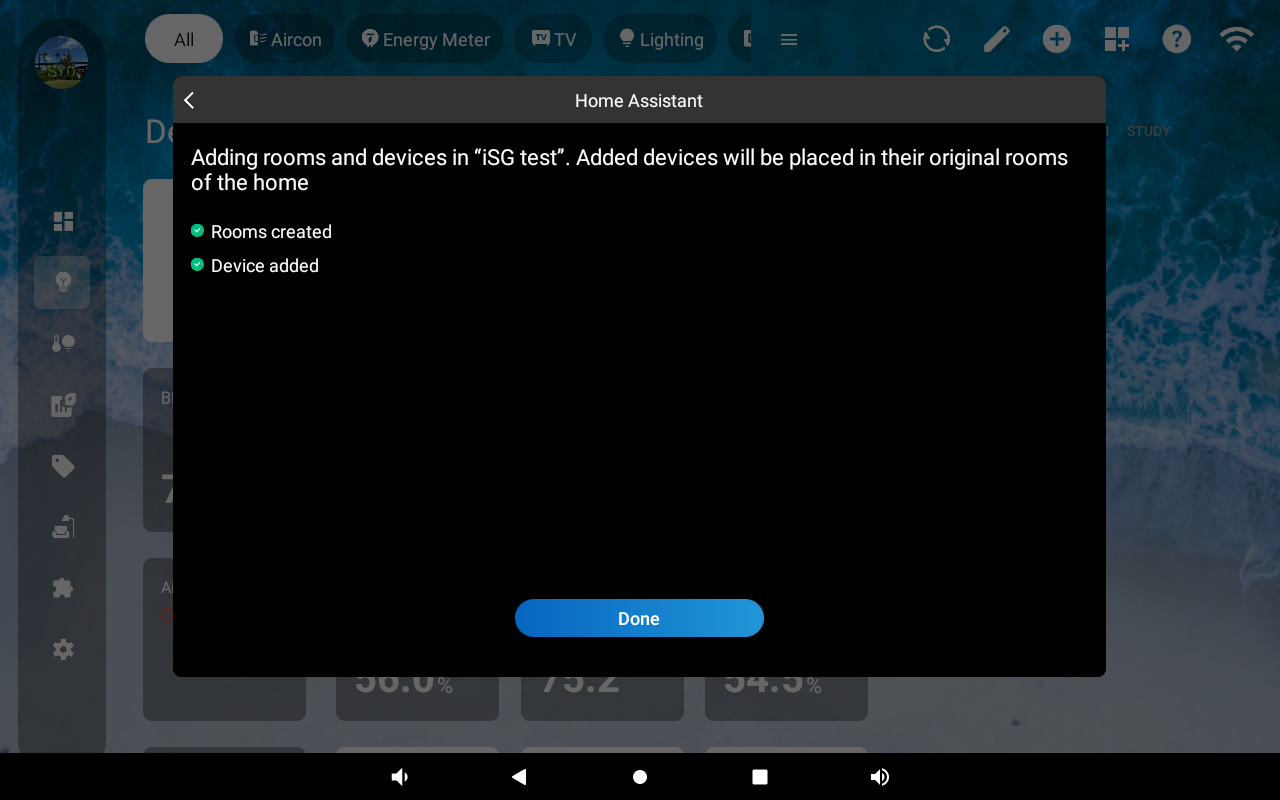

2\) After successfully adding the device to HA, next, go back to iSG "Device" → "+" → "Home Assistant," to add devices of the power type and devices that monitor total energy consumption to iSG.

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2FX3QbEYcoiDTjxEVIkUHy%2F%E4%BC%81%E4%B8%9A%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20241012182034.png?alt=media&#x26;token=59e350d4-7a22-4395-aa8d-b89c267e9f7a" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2F6DpJftlDlcZ5Qi8AVnA8%2F013.png?alt=media&#x26;token=befbf4d4-f0e5-4306-a41d-8becd36d6578" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2Fr5GTvtFxiKlfW5q7bYQg%2F%E4%BC%81%E4%B8%9A%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20241012182155.png?alt=media&#x26;token=5099c85a-475d-4186-abe3-4055f6904293" alt=""><figcaption></figcaption></figure>

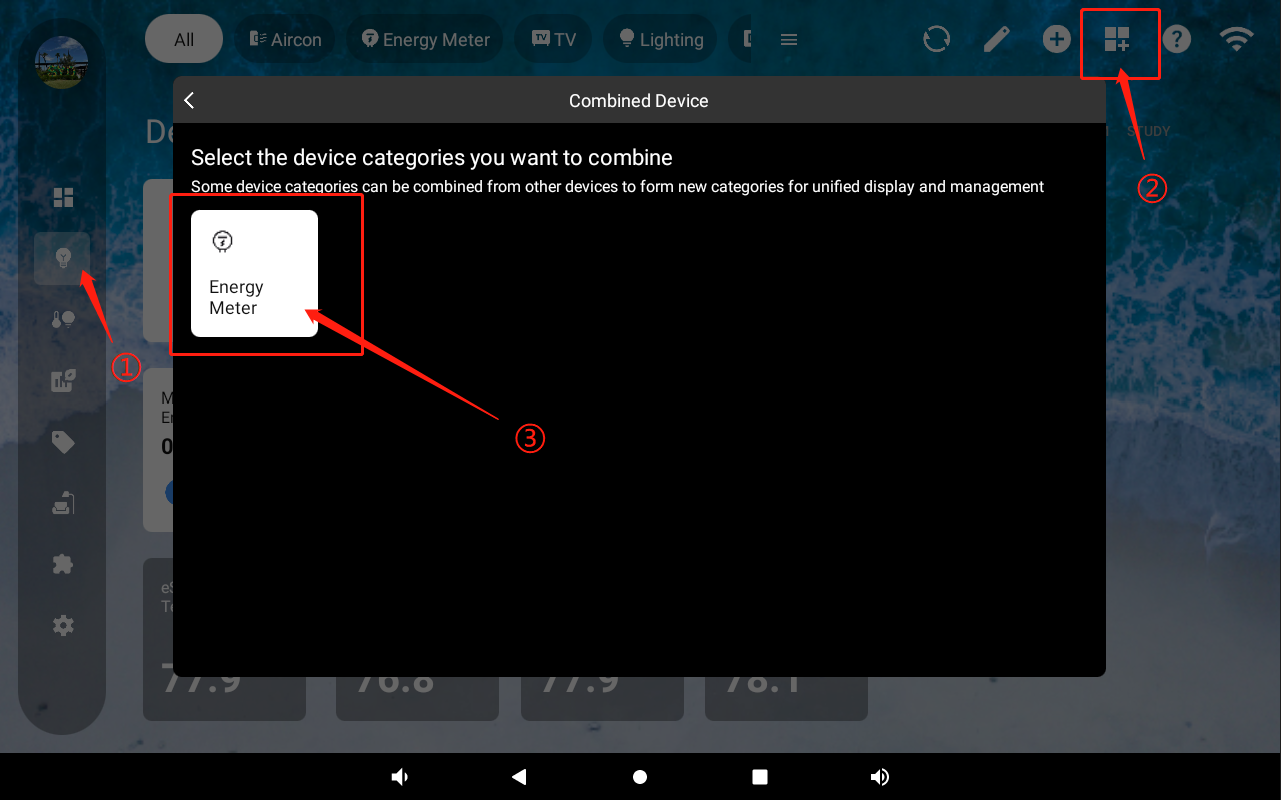

3\) Combine an energy device with a power device to form an energy consumption device.

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2F8PGiEjKDOpVL2imnkCF8%2F%E4%BC%81%E4%B8%9A%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20241012182846.png?alt=media&#x26;token=35b07f09-561e-41c0-b789-47725891c4b2" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2FHiisVy05fkmUM1rIoarm%2F%E4%BC%81%E4%B8%9A%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20241012183002.png?alt=media&#x26;token=3901f7db-5423-457c-b0f9-1a32f6f066e8" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2F1gLSwik5gTHGuyspn65x%2F%E4%BC%81%E4%B8%9A%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20241012183036.png?alt=media&#x26;token=4fdf2b68-6100-4ef8-aa81-708ac9811bca" alt=""><figcaption></figcaption></figure>

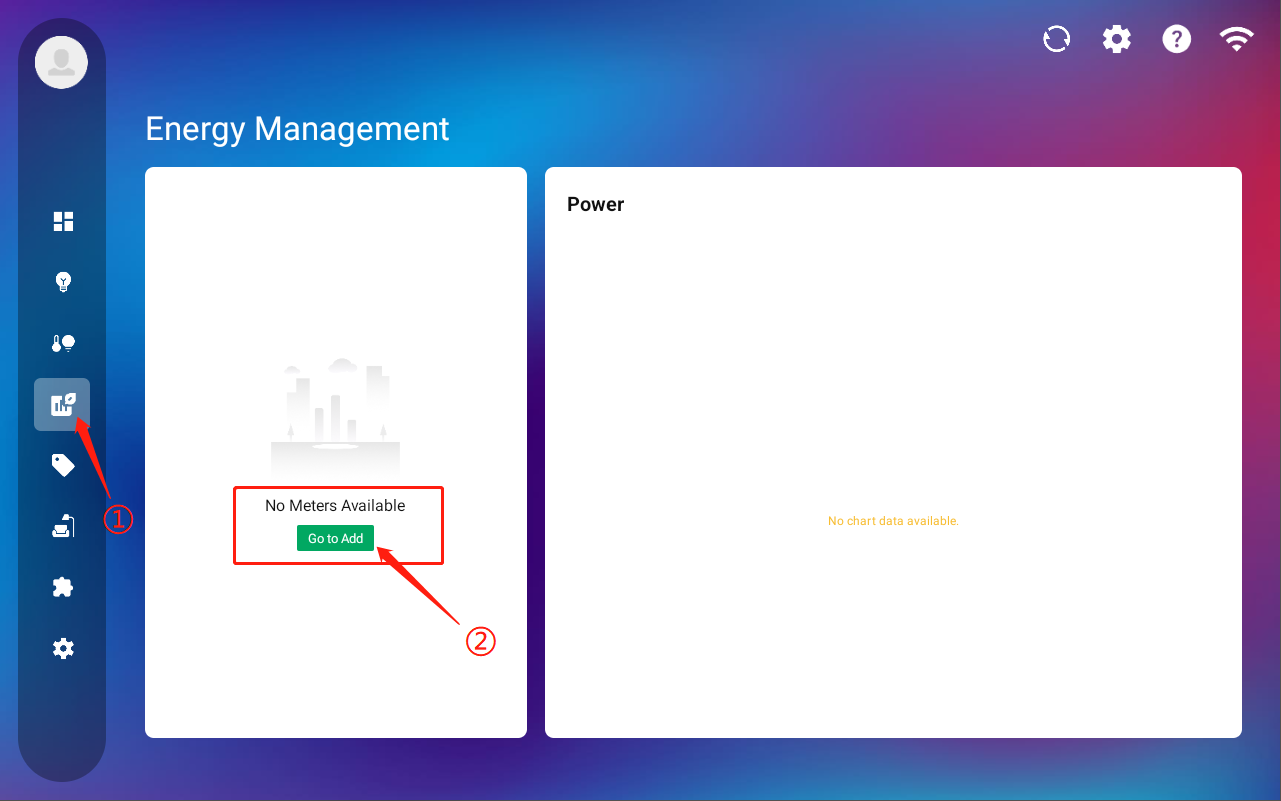

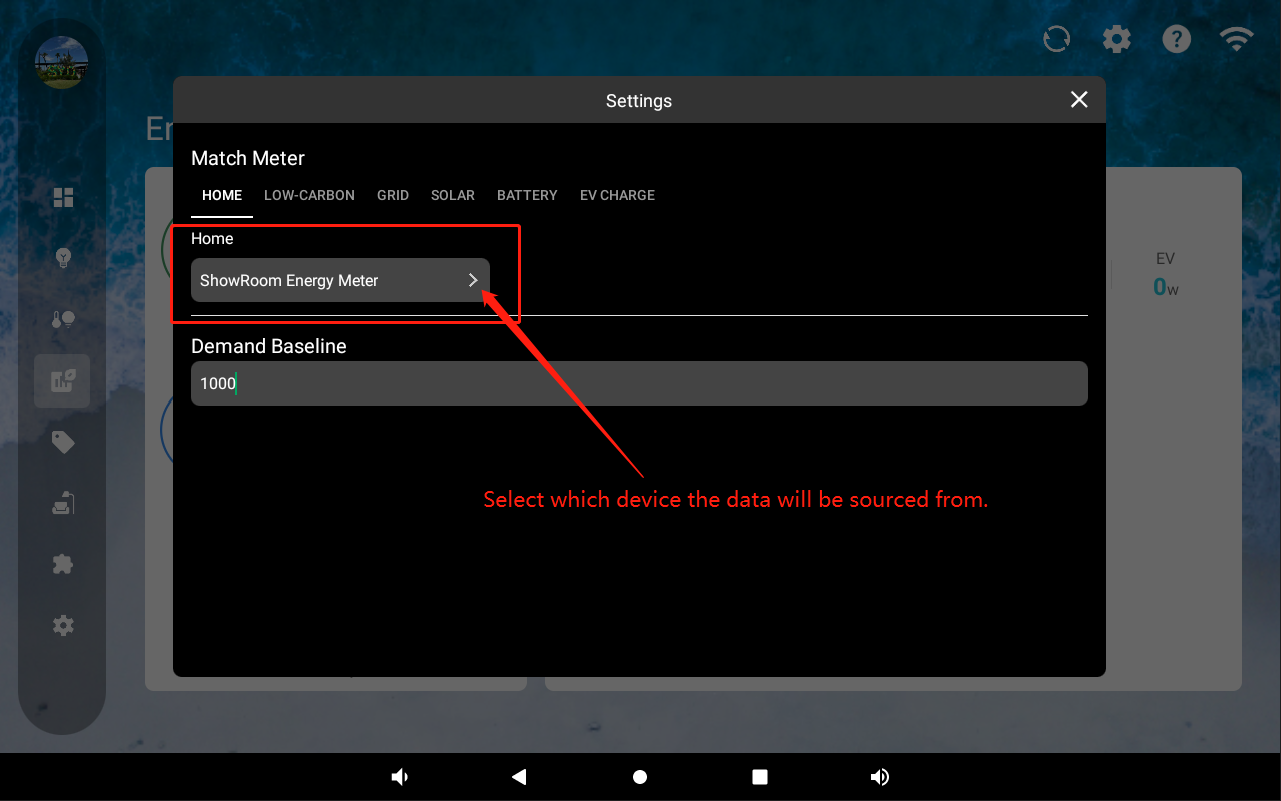

4\) Go to the navigation bar on the left side of the iSG and find energy management.

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2F2KKu0iPOybrncpo7fQSH%2F%E4%BC%81%E4%B8%9A%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20241012183156.png?alt=media&#x26;token=2a1b3690-ae68-4d82-89f7-8de8f0e49c96" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2FXaINkANXWScsv4h7AydX%2F%E4%BC%81%E4%B8%9A%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20241012183510.png?alt=media&#x26;token=46088455-eb66-49b0-a1b5-0b6422865944" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1561436000-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpCtFemS511EXKjNnjKqg%2Fuploads%2Fx77wuxPTUs5QX9wvA2m4%2F%E4%BC%81%E4%B8%9A%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20241012174644.png?alt=media&#x26;token=af9ff624-eb3b-427e-b312-d4f20612b2c9" alt=""><figcaption></figcaption></figure>
